Toy Filling Machine User Friendly Plush Fill Machine Plush Toy Filling Line
Toy Filling Machine User Friendly Plush Fill Machine Plush Toy Filling Line
Plush Fill Machine adopts the electronic pedal microswitch and the reliable and advanced control technology, which enables the machine to load and control the cotton and precisely controls the amount of cotton spraying.It adopts thickened gas tank to ensure that the machine has a strong enough working pressure.The machine adopts dismountable multiple cotton pipe to meet the needs of filling toys of different sizes. It has the advantages of high speed, fluffy effect, softness, elasticity and less cotton consumption. The gas consumption is reduced by 30% compared with the same kind of products. Besides, this machine saves power and reduces cost, and is suitable for filling toys, pillows, cushions, sofas, etc.
1.Fiber Feeder
| Model | IN005F | IN005F1 | IN005F2 |
| Capacity | 60-200kg/h | 60-300kg/h | 30-120kg/h |
| Air pressure | 0.6-0.8Mpa | ||
| Voltage | Customized | ||
| Power | 1.85kw | 2.95kw | 2.95kw |
| Size | 2000*1600*2100mm | 5800*1600*2100mm | 2000*1000*1700mm |
| Weight | 300kg | 450kg | 380kg |
| Other Production Quantities Can be Customized | |||
This automatic Cotton Feeding Machine is primarily used for the automatic feeding and pretreatment of fluffy materials such as polyester fibers, PP cotton, and hollow fibers, providing a stable and uniform supply of raw materials to downstream opening and filling machines.
2.Fiber Opening Machine
| Model | IN003F | IN004F | IN005F | IN006F |
| Capacity | 60-90kg/h | 120-150kg/h | 260-300kg/h | 300-500kg/h |
| Voltage | Customizable | |||
| Power | 3.25kw | 4.25kw | 5.75kw | 7.8kw |
| Size | 1800*650*850mm | 2200*800*920mm | 2200*1300*1080mm | 2200*1500*1080mm |
| Weight | 250kg | 350kg | 500kg | 700kg |
| Other Output Can Be Customizable | ||||
It is the most advanced, the smallest size and the most powerful products athome and abroad.
It can open 15%-20% more per hour than similar products.
This is fully enclosed with neat beautiful appearance. Besides. it has itsown protection device.
This is casy and safe to operate, lift and install.
This Machine uses puling force produced by thehobbing to open all kinds fibers, It loosen and open more than 99%, Besides, it has the same loosening effect on the woolen blanket and theleRover bits.
3.Sponge Shredder
| Model | AB200-4 | AB300-4 | AB400-4 |
| Capacity | 40-50kg/h | 70-80kg/h | 100-120kg/h |
| Size | 680*600*1200mm | 1020*800*1500mm | 1100*500*1400mm |
| Voltage | Customizable | ||
| Power | 4.0kw | 7.5kw | 11kw |
| Weight | 100kg | 180kg | 350kg |
| Other Capacity can be Customizable | |||
Sponge Crusher is a kind of equipment specially used to cut various sponges and foam plastic materials into small particles or fragments. It can not only efficiently process various polyurethane foams such as ordinary sponges, slow rebound sponges, memory sponges and latex sponges, but also crush plastic foam materials such as PVC, PE, EVA, and even various foam plastics such as EPS, EPE, EPP, XPS, PUR, etc., to meet various application needs such as furniture filling, toy filling and environmental recycling.
4.Fiber Blowing Machine
| Model | AB420-6 | AB430-6 |
| Size | 450*650*600mm | 450*650*600mm |
| Voltage | Customizable | |
| Power | 1.5kw | 2.2kw |
| Weight | 70kg | 75kg |
The Cotton Suction Machine is a special conveying equipment that uses the airflow negative pressure principle to "suck" loose fiber cotton (such as polyester fiber cotton, down, PP cotton, pearl cotton, etc.) from the silo or bag and transport it to the next process (such as opener, Quantitative Filling Machine, filling machine). It is widely used in modern home textiles, toys, clothing and recycled fiber recycling production lines, which can effectively replace manual handling and improve the level of production automation.

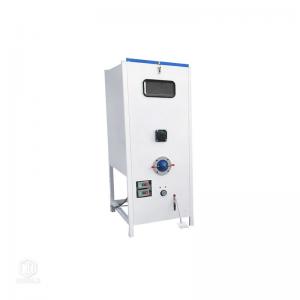

6.Toy Filling Machine
| Model | ABB-1550(Single) | AB-005(Double) | AB-006(Double) |
| Capacity | 50-60kg/h | 80-100kg/h | 150-200kg/h |
| Air Pressure | 0.6-0.8Mpa | ||
| Voltage | Customizable | ||
| Power | 0.75kw | 1.5kw | 2.2kw |
| Size | 1200*800*1550mm | 1200*800*1550mm | 1400*900*1650mm |
| Weight | 250kg | 350kg | 500kg |
| Other Capacity and model can be Customizable | |||

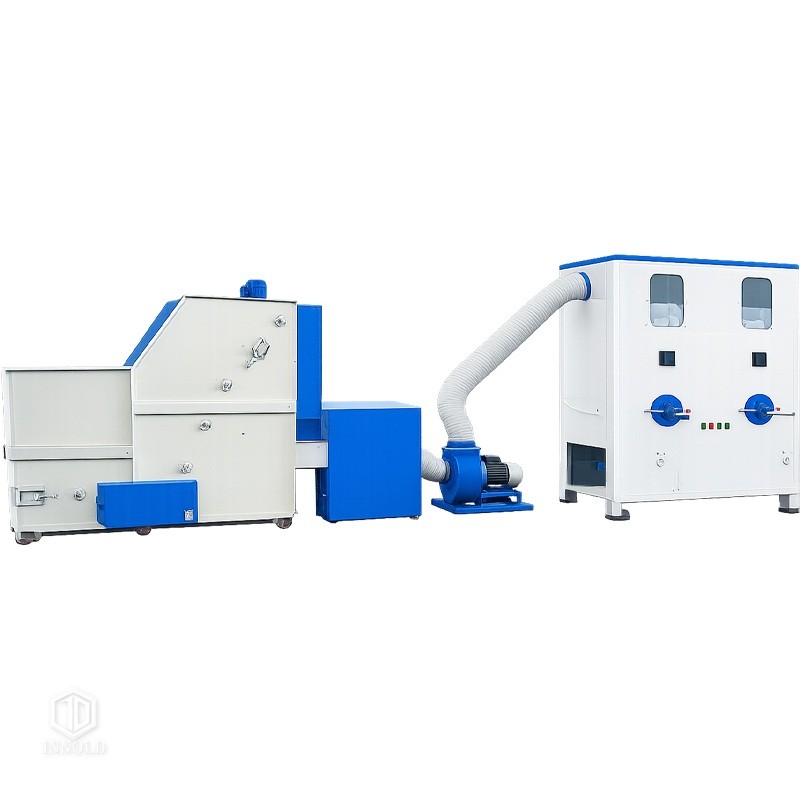

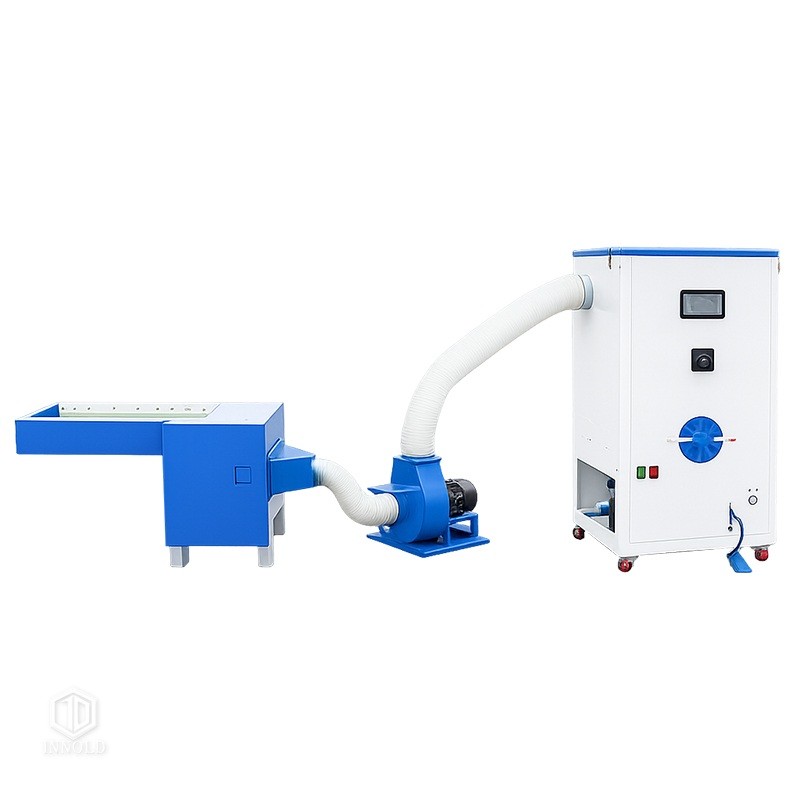

The Plush Toy Filling Line cotton after filling feels softer and the work efficiency is more than 15 times of manual cotton filling; This series is the first choice of many processing equipment manufacturer; The Plush Toy Factory Equipment can fill materials including: cloth, PP cotton, fiber, foam particles,sponge and avian hair.
Advantages of the Plush Toy Production Line:
1. High-Efficiency Filling

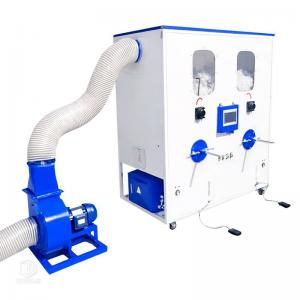

The Doll Fiber Filling Machine is designed for continuous and stable operation, significantly increasing filling speed and production efficiency. It is an ideal choice for mass production of plush toys, stuffed dolls, cushions, and soft products.
2. Even and Fluffy Filling Effect
With an optimized airflow structure and precise fiber control, the machine ensures even distribution of fibers inside the doll, creating a full, soft, and natural filling effect, avoiding hard lumps or fiber clumping.
3. Clean and Dust-Proof Design
Equipped with an intelligent airflow system, it smoothly expels excess air during the filling process, effectively reducing fiber flyaway and maintaining a clean and safe working environment.
4. Easy Operation, Reduced Labor Costs
The simple control system allows one operator to easily complete the filling work. This greatly reduces labor intensity and helps factories reduce production costs while maintaining consistent quality.
5. Wide Range of Applications
Suitable for various materials such as polyester fiber, PP cotton, recycled fiber, and microfiber. The machine can be widely used in plush toys, dolls, pillows, cushions, sofa fillings, and decorative products.
6. Stable Structure and Durable
Manufactured with heavy-duty steel structure and high-quality electrical components, ensuring long service life, stable performance, and low maintenance costs.
7. Customizable Solutions
Filling capacity, workstations, and system configurations can be customized according to different production needs, helping customers build efficient and flexible filling production lines.
