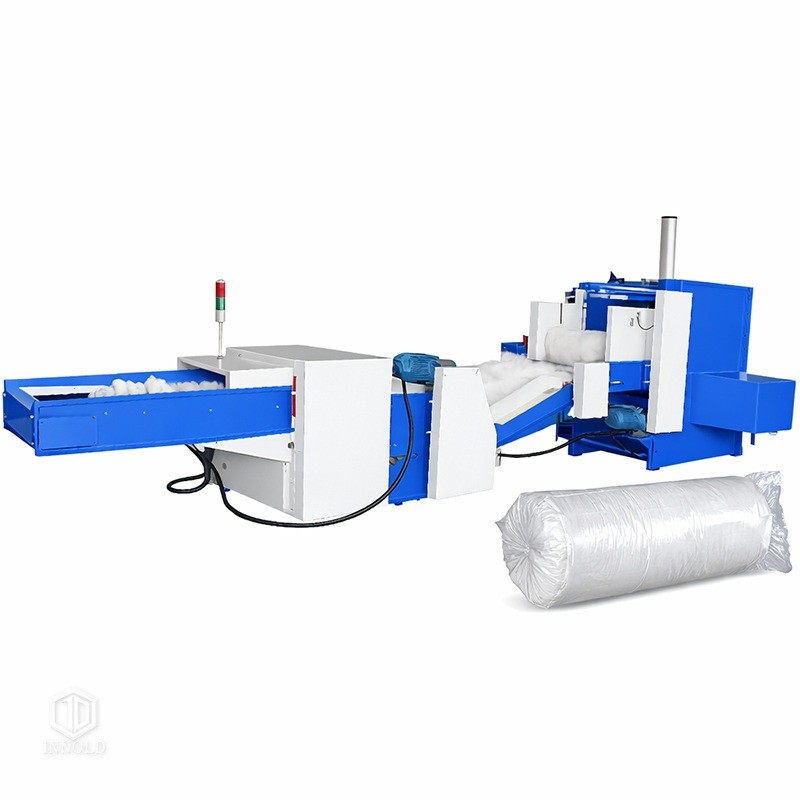

Sofa Cushion Roll Packing Line High ROI Pillow Fiber Cushion Compression Rolling Packing Machine Line Supplier

The Cushion Compression Roll Packing Machine is an automated production system that integrates fiber filling, compression, rolling, and packaging. It is primarily used for the efficient production and export packaging of home textile products such as pillows, cushions, and seat cushions.

This Pillow Stuffing And Roll Packing Machine works by filling loose fibers into the product and then compressing and rolling the finished product. This significantly reduces the volume of the product without affecting its resilience and performance, thereby significantly reducing storage and international transportation costs.

1.Fiber Feeder

This machine is primarily used for the automatic feeding and pretreatment of fluffy materials such as polyester fibers, PP cotton, and hollow fibers, providing a stable and uniform supply of raw materials to downstream opening and filling machines.

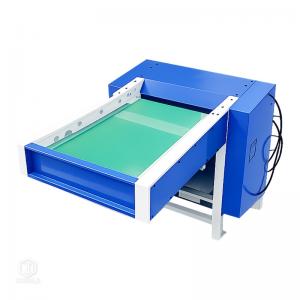

2.Fiber Opening Machine

It is the most advanced, the smallest size and the most powerful products athome and abroad.

It can open 15%-20% more per hour than similar products.

This is fully enclosed with neat beautiful appearance. Besides. it has itsown protection device.

This is casy and safe to operate, lift and install.

This Machine uses puling force produced by thehobbing to open all kinds fibers, It loosen and open more than 99%, Besides, it has the same loosening effect on the woolen blanket and theleRover bits.

4.Fiber Blowing Machine

The Cotton Suction Machine is a special conveying equipment that uses the airflow negative pressure principle to "suck" loose fiber cotton (such as polyester fiber cotton, down, PP cotton, pearl cotton, etc.) from the silo or bag and transport it to the next process (such as opener, Quantitative Filling Machine, filling machine). It is widely used in modern home textiles, toys, clothing and recycled fiber recycling production lines, which can effectively replace manual handling and improve the level of production automation.

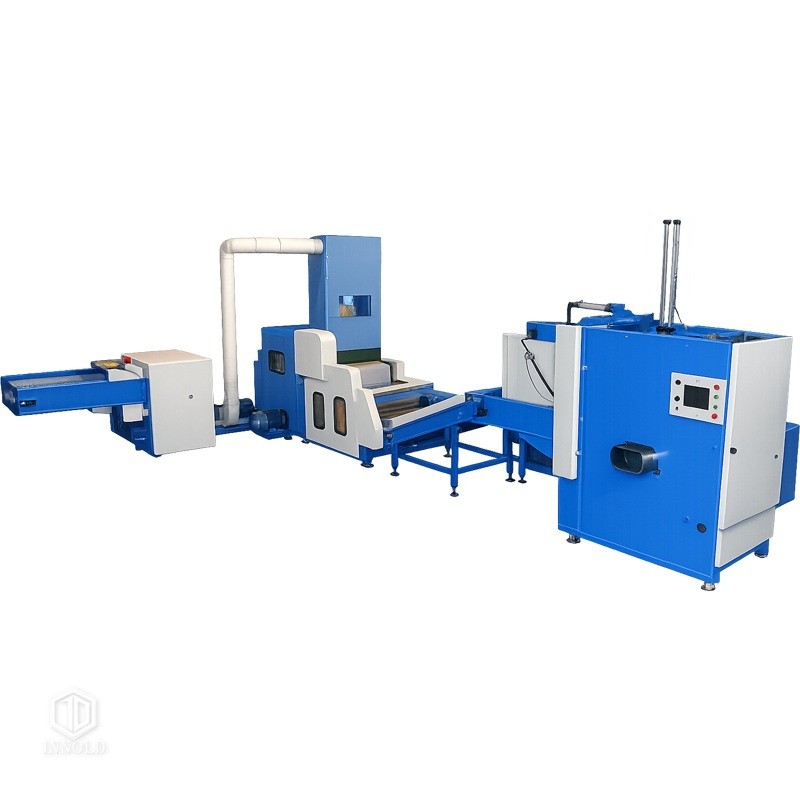

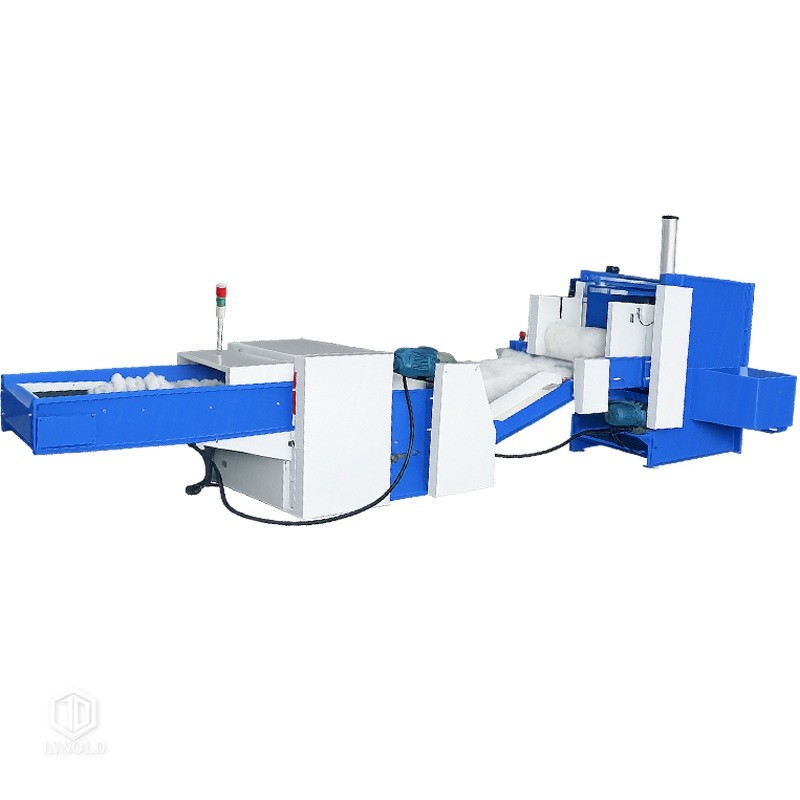

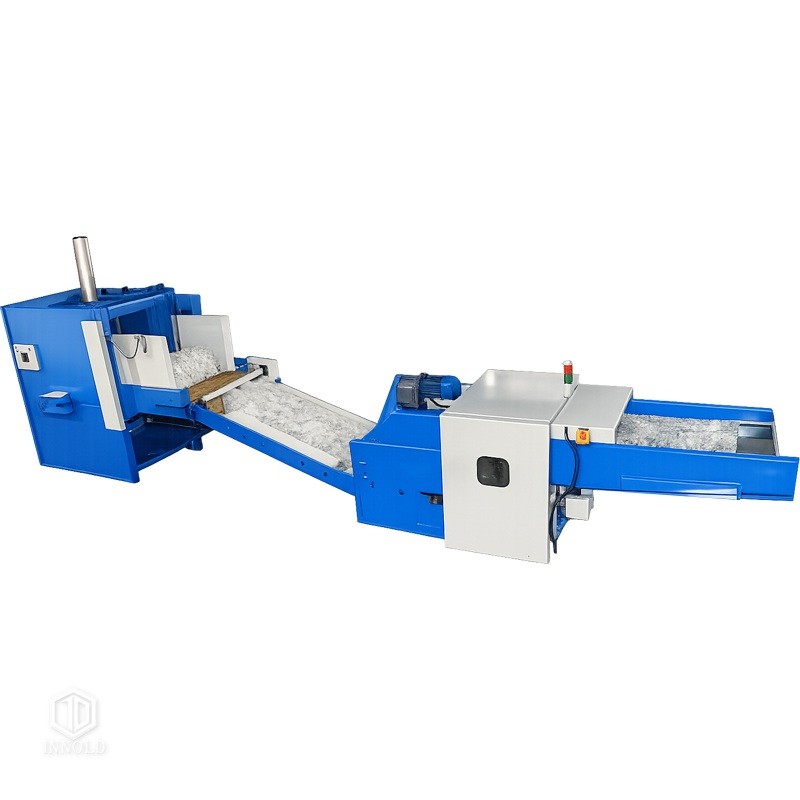

6.Fiber Rolling Packaging Machine Line

Working Principle of the Furniture Cushion Compression Packing Line:

1. Fiber Filling System

The opened polyester fibers are transported into the filling unit via a conveying system. Under the action of airflow or mechanical force, the fibers are evenly filled into the pillowcase or product, ensuring consistent filling volume and fluffiness for each product.

2. Conveying and Shaping

The filled products move smoothly through the conveying structure, preventing deformation, stacking, or uneven filling, preparing them for subsequent compression and rolling.

3. Compression and Rolling System

The products are gradually compressed and rolled under controlled pressure, forming a regular rolled shape.

This process does not damage the fiber structure, and the product can quickly return to its original fluffy state after unpacking.

4. Rolled Product Output or Bagging

The rolled products can be directly output or sent to the bagging station for PE bag/compression bag packaging, facilitating subsequent boxing and export transportation.

Core Advantages of the Pillow Fiber Rolling Packing Line Supplier:

Significantly Reduced Transportation Costs

Through compression and rolling, the volume of the finished product can be reduced by 40%-70%, greatly increasing container loading efficiency, especially suitable for export orders.

Uniform Filling and Consistent Quality

The automated filling system avoids problems such as uneven softness and hardness and weight errors caused by manual filling, ensuring stable product quality. Excellent resilience

The scientifically designed compression and rolling method does not damage the fiber structure, and the product quickly recovers its fluffy state after unpacking.

Easy to integrate into production lines

It can be connected with equipment such as Fiber Opening Machines, fiber conveying systems, and automatic weighing systems to form a complete filling and packaging solution.
