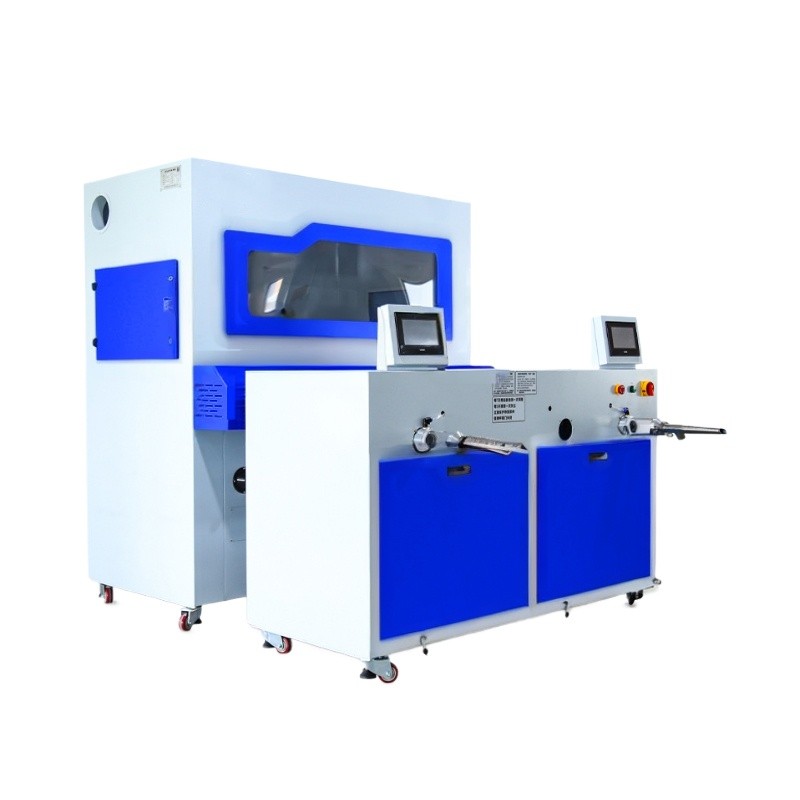

Down And Feather Filling Machine Quantitative Fiber Pillow Filling Machine
Down And Feather Filling Machine Quantitative Fiber Pillow Filling Machine
| Filling Range | 0.2-35grams | Show Weight Accuracy | 0.01gram |

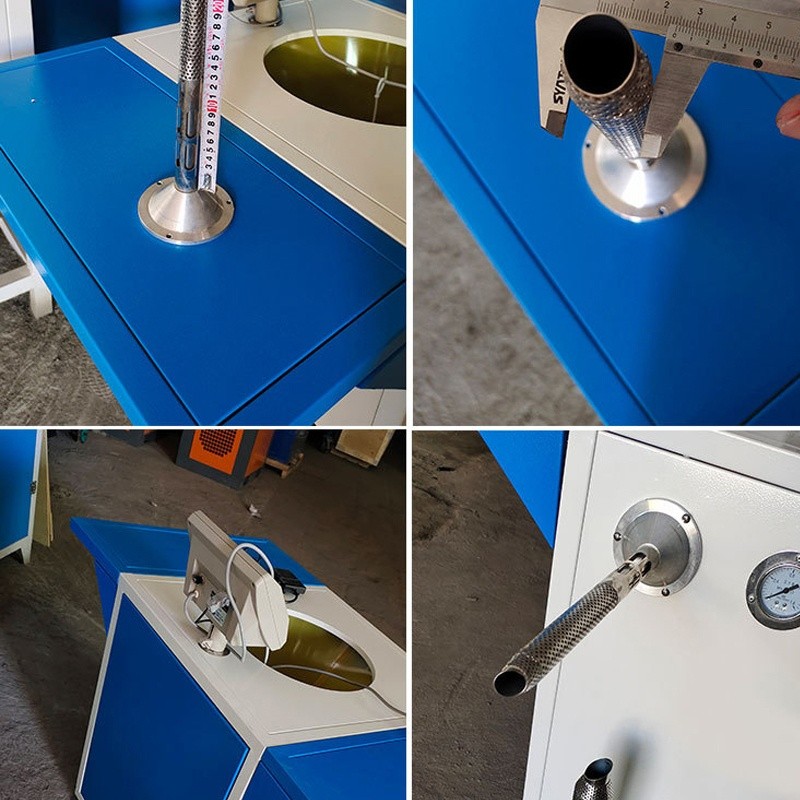

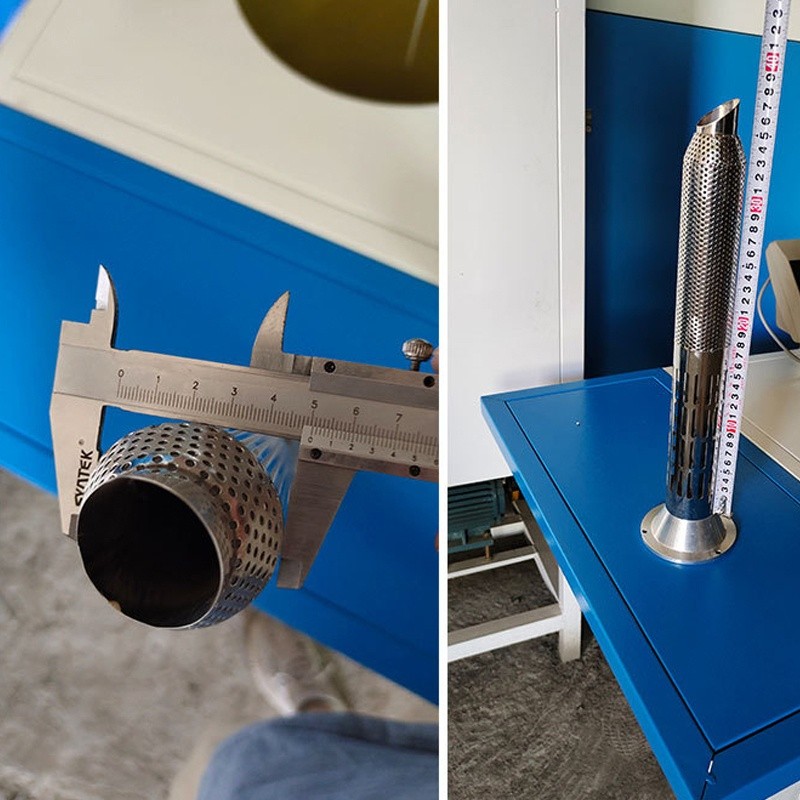

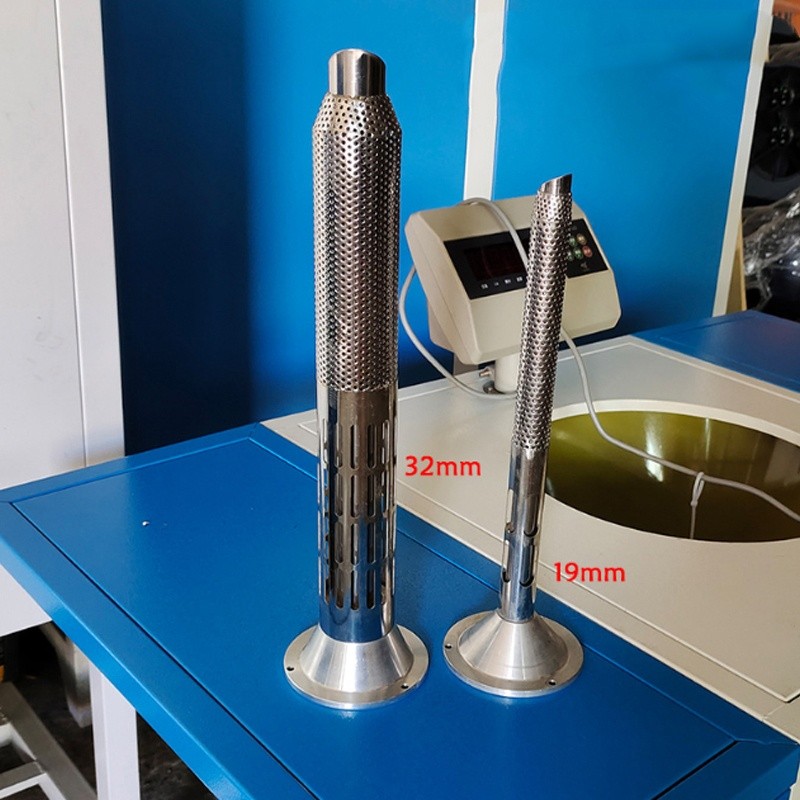

| Nozzles Size | 19mm and 25mm | Dynamic weighing error | ± 3% |
| Driven Type | Atmospheric Pressure | Air Pressure | 0.7-0.8MPa |
| Supply Power | 1AC 220V 2.5kw | Air compressor power | 7.5kW or above |
| Filling Materails | Duck Down, Goose Down, Ball Fiber, Short Fiber | Application | Down Jacket,Vest,Pants,Duvets |
Down And Feather Filling Machine is an automated device especially developed for quantitative dental filling of down, plume, or down-like materials. It is generally made use of in the manufacturing of down jackets, down patchworks, down cushions, sleeping bags, and other products. Making use of an advanced evaluating and conveying system, this maker successfully and equally fills up the wanted weight of down right into the material cavity, significantly improving production efficiency and filling accuracy.
I. Main Features of an Down And Feather Filling Machine:
Automatic Quantitative Weighing:

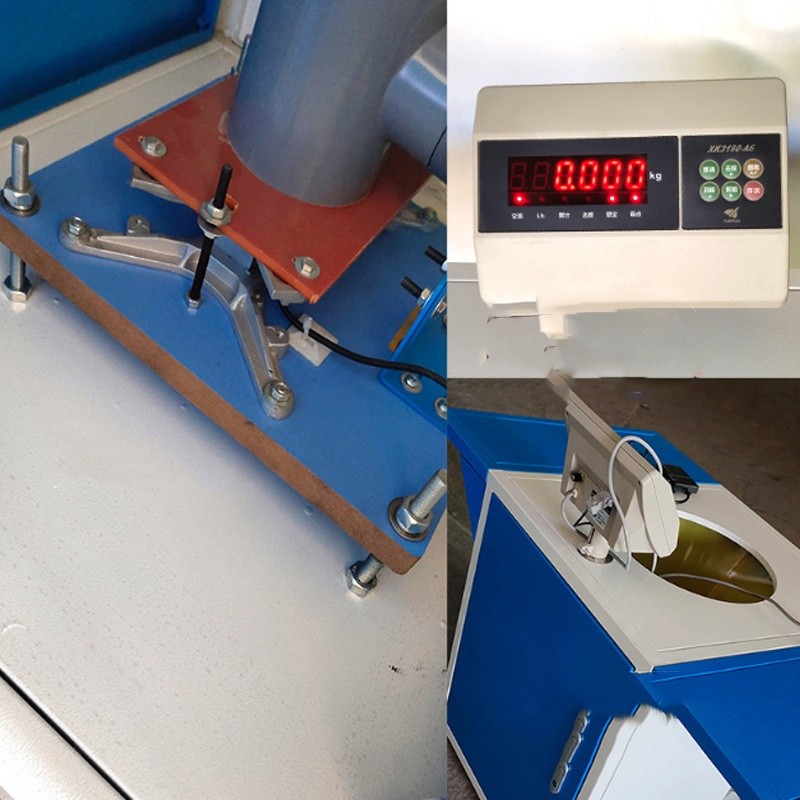

The machine includes an integrated high-precision sensing unit that instantly weighs down or down-like materials according to the established weight.
Airflow Filling System:
It utilizes high-speed air flow to rapidly provide down right into a marked cavity, such as a down jacket area, pillow core, or patchwork core.
Automatic Area Control:
It permits independent filling up control of several compartments, guaranteeing an attire down web content in each area.
Dust Elimination System:
The maker is geared up with an automatic dirt elimination and filtration system to minimize dirt leakage and boost the workshop environment.
Easy Procedure:
Most machines are furnished with a touchscreen interface, permitting the operator to merely establish the criteria and immediately operate.
II. Scope of Application Down And Feather Filling Machine:
Down coat makers
Home fabric quilt manufacturers
Down sleeping bag and down footwear makers
Cushion and pillow filling business
Faux down/artificial cotton filling applications (compatible with some automated down filling up equipment versions).
III. Advantages of Down And Feather Filling Machine:
| Advantages | Description |
| High-precision down filling | Error control within ±0.1 gram |
| Improved production efficiency | Hundreds of cells can be filled per hour |
| Reduced labor costs | One person can operate multiple machines, significantly reducing manual intervention |
| Improved product consistency and quality | Precisely control down volume to avoid uneven filling, bulging, or collapse |
| Supports a variety of filling materials | Compatible with down, imitation down, feathers, rayon, and other materials |
